AIM

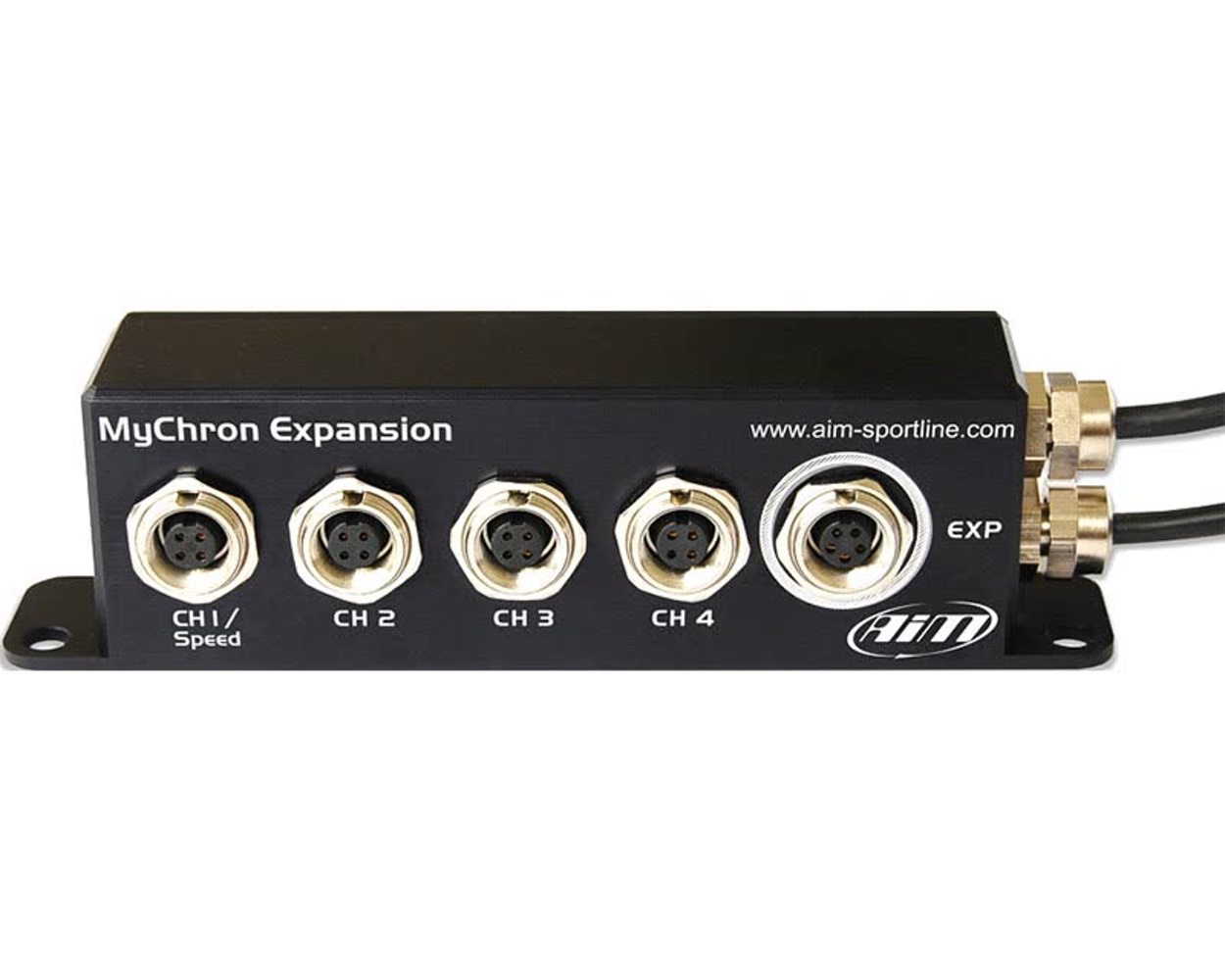

Mychron 4 Expansion
Regular price
£250.00 GBP
Regular price
Sale price
£250.00 GBP
Unit price
per
Tax included.
Couldn't load pickup availability
- Included is the external power to connect to a battery
- MyChron Expansion is the new channel multiplier improving MyChron4 and MyChron4 2T performances, thanks to four additional channels and a further connector for the CAN bus. Through this last connector MyChron4 can be connected to another AiM system (LCU
- Thanks to its specific wirings, MyChron Expansion powers MyChron4 and its peripherals with an external battery, avoiding internal battery consumption.
- MyChron Expansion features four inputs to connect MyChron4 to an equal number of additional channels.
- All channels are easily configurable as analog through MyChron 4 menu to sample data outcoming from:
- Exhaust gas valve position sensor (very important to understand at which RPM value the exhaust port opens)
- Wheel speed sensor: the first input on the left can be configured also as digital input
- No contact brake pedal position sensor
- No contact throttle pedal position sensor (to know if and when to accelerate)
- Brake pressure sensor
- Water temperature or cylinder head temperature (PT100 thermo-resistor only)
- Steering angle potentiometer (to highlight over/under steering situations)
